Air Cooled Crystallizer is designed using high-grade mild steel and stainless steel with central shaft, pipes, drive end, etc. It comes with strong C.I. housing with G.M. bush bearing. In addition, it is also available with anti-frictional self-aligned roller bearing, spiral ribbons, and compensating pads for ensuring maximum efficacy. This comes in suitable outlet valves with hinges and levers for ensuring easy control.
Crystallizer
Crystallizer
In the sugar industry, a crystallizer is a key piece of equipment used in the production of refined sugar. The process starts with the extraction of sugar juice from sugar cane or sugar beet, which is then purified through various processes such as filtration, evaporation, and clarification. The resulting sugar syrup is then sent to the crystallization stage. In the sugar industry, a crystallizer is a key piece of equipment used in the production of refined sugar. The process starts with the extraction of sugar juice from sugar cane or sugar beet, which is then purified through various processes such as filtration, evaporation, and clarification. The resulting sugar syrup is then sent to the crystallization stage. The crystallizer is used to produce sugar crystals by cooling and seeding the sugar syrup with tiny sugar crystals, known as seed crystals. As the syrup cools and evaporates, more sugar crystals begin to form and grow in size, eventually forming a mass of crystals.
The crystals are then separated from the syrup using a centrifuge, and the remaining syrup is further processed to recover any remaining sugar. The crystals are washed and dried, and the resulting refined sugar is then packaged for distribution.
Types Of Crystallizer
This fully automated Seed Crystallizer ensures enhanced sugar recovery by reducing C molasses purity. It ensures to enhance the seed quality, minimizes seed development time, and boosts striking speed. This is available with improved centrifugal that ensures crystal uniformity and high performance. This is ideal for enhancing plant performance with lesser sugar recirculation. It can be easily installed in existing plants for enhancing efficacy, operational safety, and durability.

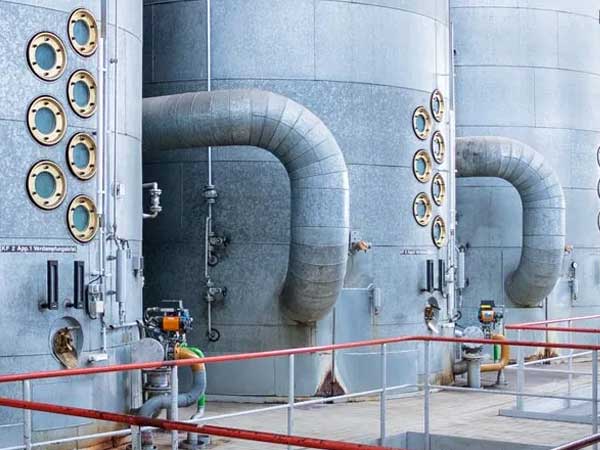

Vertical Crystallizer is used in beet and cane sugar industries owing to their hard-wearing design with large volume and space-saving structure. It is installed on the ground without using any supporting steelwork. This efficient and sturdy equipment ensures to make better contact between heat-exchange surface and massecuite. This Vertical Crystallizer is designed with sturdy pipes and an anti-corrosive coating to ensure high durability.
