Evaporators

An evaporator is a piece of equipment used in various industries to remove water or other solvents from a solution by evaporating the solvent. The process involves heating the solution to its boiling point, which causes the solvent to evaporate and leave behind the solid or dissolved components. Evaporators are used in a wide range of applications, including food and beverage production, chemical processing, pharmaceuticals, and wastewater treatment.

There are several types of evaporators, including:

1. Falling film evaporators - in which a thin film of liquid flows down a heated surface and evaporates.
2. Forced circulation evaporators - in which a pump is used to circulate the liquid through the evaporator.
3. Plate evaporators - in which the liquid flows through a series of plates that are heated by steam.
4. Rotary evaporators - in which the solution is placed in a rotating flask, and the solvent is evaporated under vacuum.

The type of evaporator used depends on the properties of the solution, the desired level of concentration, and the required throughput.

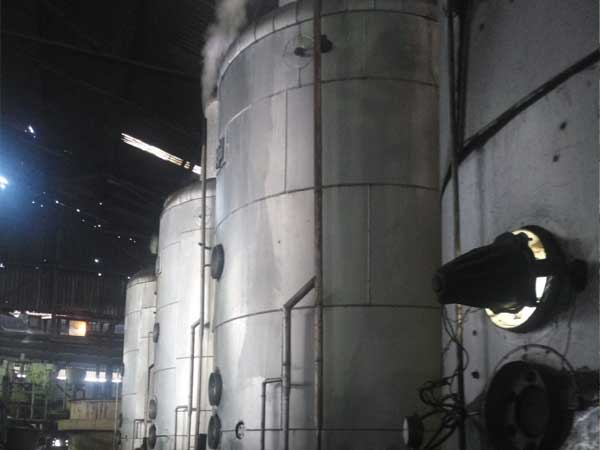

In the sugar industry, evaporators are used to concentrate the sugar syrup obtained from sugar cane or sugar beet. The sugar syrup is heated in the evaporator to evaporate the water content and concentrate the sugar. The resulting thick syrup is then sent to the crystallization stage, where seed crystals are added to initiate the crystallization process.
