Ultra Filteration Unit

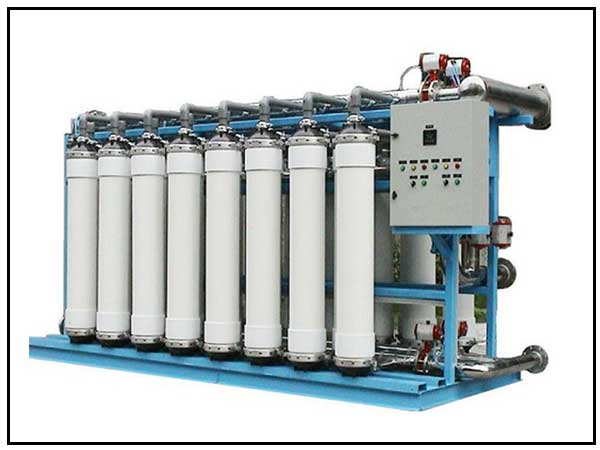

Ultrafiltration (UF) is a membrane-based water treatment technology that uses a membrane with a pore size of 0.01 to 0.1 microns to remove suspended solids, bacteria, and viruses from water. A UF unit consists of a membrane module, a feed pump, and a backwash system.

The following are the general steps involved in the UF process:

Pretreatment:

The first step in the UF process is pretreatment, which involves the removal of large particles, such as sand and sediment, from the feedwater using sediment filters.

Feed Pump:

The pretreated water is then pumped through the UF membrane using a feed pump.

UF Membrane:

The UF membrane is a semi-permeable membrane that allows water and small particles to pass through while rejecting suspended solids, bacteria, and viruses.

Permeate:

The purified water that passes through the UF membrane is known as permeate and is collected for further treatment or use.

Concentrate:

The impurities and contaminants that are rejected by the UF membrane are known as concentrate and are discharged as waste.

Backwash:

To maintain the performance of the UF membrane, a backwash system is used to periodically clean the membrane surface and remove any accumulated solids and contaminants.

UF units are widely used in various industries, such as food and beverage, pharmaceuticals, and electronics manufacturing, where high-quality water is required for various processes. The UF process is highly effective in removing suspended solids, bacteria, and viruses from water, producing high-quality water that meets the required standards. UF units are often used as a pre-treatment step for other water treatment processes, such as RO, to improve their performance and reduce operating costs.
